Let us learn how to solve real-life situations based on the angle of depression.
Example:

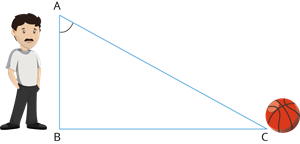

1. A man observes the ball, which is at a distance of \(1.5 \ m\) from him. If the angle of depression is \(45^{\circ}\), then find the height of the man.

Solution:


Let \(AB\) denote the height of the man and \(BC\) denote the distance of the man from the ball.

From the given data, we have:

\(\theta = 45^{\circ}\), and \(BC = 1.5 \ m\)

To find: The height of the man (\(AB\)).

Explanation:

In the right \(\triangle ABC\), \(tan \ \theta = \frac{BC}{AB}\)

\(tan \ 45^{\circ} = \frac{1.5}{AB}\)

\(1 = \frac{1.5}{AB}\)

\(AB = 1.5 \ m\)

Therefore, the height of the man is \(1.5 \ m\).


2. A man observes a ball which is at a distance of \(1.2 \sqrt{3} \ m\) from him. If the height of the man is \(1.2 \ m\), then find the angle of depression.

Solution:


Let \(AB\) denote the height of the man and \(BC\) denote the distance of the man from the ball.

From the given data, we have:

\(AB = 1.2 \ m\), and \(BC = 1.2 \sqrt{3} \ m\)

In the right angled triangle \(ABC\), \(tan \ \theta = \frac{BC}{AB}\)

\(tan \ \theta = \frac{1.2 \sqrt{3}}{1.2}\)

\(tan \ \theta = \sqrt{3}\)

\(\theta = 60^{\circ}\)

Therefore, the angle of depression is \(60^{\circ}\).
Important!
The angle of elevation and angle of depression are equal because they are alternate angles.
