Learn moreStep 1: Draw a line segment \(PA\).
![output-onlinepngtools (27).png](https://resources.cdn.yaclass.in/61d3d472-992a-4895-a802-6f203088b2b6/outputonlinepngtools27.png)
Step 2: Place the protractor on the line segment \(PA\) by taking the midpoint of the protractor at point \(P\), as shown in the figure.
![output-onlinepngtools (30).png](https://resources.cdn.yaclass.in/69d56e9f-f192-4356-8c4d-d992be422f3e/outputonlinepngtools30.png)
Step 3: On \(PA\) from the right start counting from \(0°\) in the ascending order (counter-clockwise direction and finally mark a point \(Q\) using a sharp pencil at the point showing \(60°\) on the semi-circular edge of the protractor.
![output-onlinepngtools (29).png](https://resources.cdn.yaclass.in/2ac0fdf1-04c9-411b-be5b-960dcac36ede/outputonlinepngtools29.png)

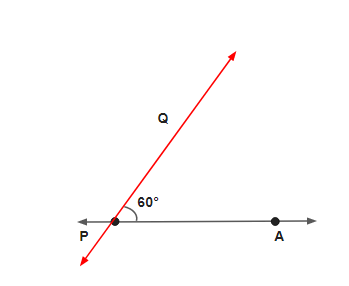

Step 4: Remove the protractor and join \(PQ\).
![output-onlinepngtools (7).png](https://resources.cdn.yaclass.in/312dd64c-4b62-4690-85e0-121243d6b7a7/outputonlinepngtools7.png)
We get the required angle \(∠APQ =\) \(60°\).
