Circuit connections — task. Science State Board, Class 10.

PDF chapter test TRY NOW

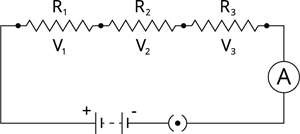

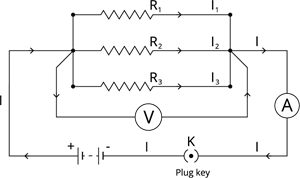

Observe the picture and answer carefully:

1.

If the circuit is broken at any point in the loop, then the __________.

current will flow through the circuit
Low current will flow in the circuit
current will not flow through the circuit

2.

If the circuit is broken at any point in the loop, then the __________.

current will flow through the circuit
Low current will flow in the circuit
current will not flow through the circuit
