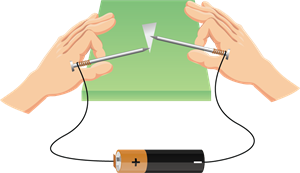

Give the procedure to experiment the heating effect of electric current.

Answer variants:

Connect a thin pin to the wires of a certain length

Join the wires to the terminals of the \(9\ V\) electric cell

Place the arrow-shaped foil on a wooden board

Make sure that the head of the arrow is pointed

Cut an aluminium foil in the shape of an arrow

Keep one pin on the tip of the arrow and another pin
about \(2\) \(mm\) away

STEP 1:

STEP 2:

STEP 3:

STEP 4:

STEP 5:

STEP 6:
